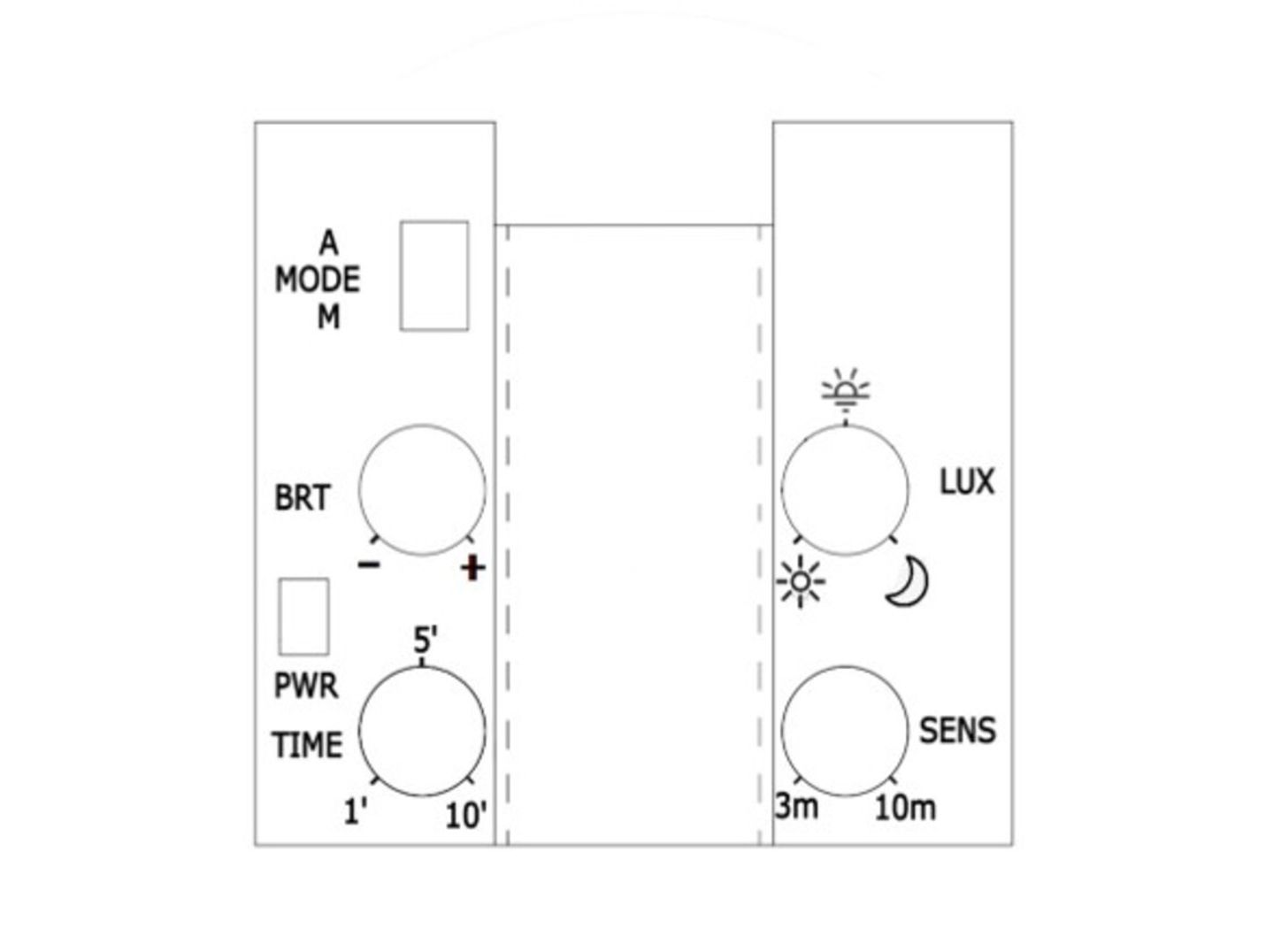

The Netatmo Outdoor Light has five physical settings, accessible directly on the product:

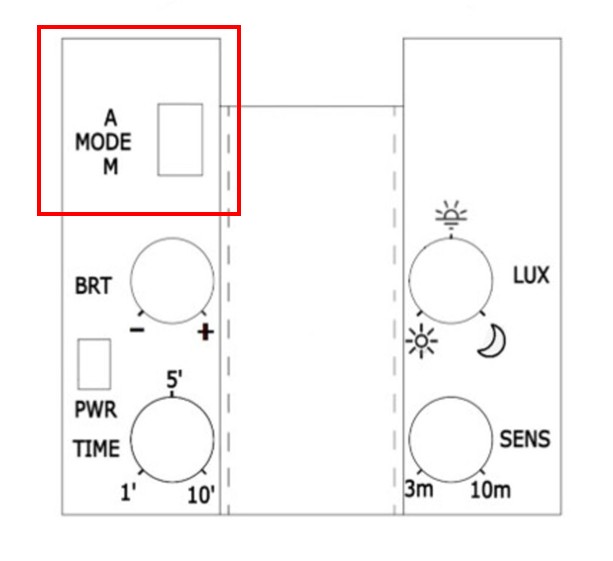

MODE — Operating mode
- A (Automatic): the light is controlled by the PIR sensor.
- M (Manual): the light stays on permanently. Brightness is adjustable via the BRT dial.

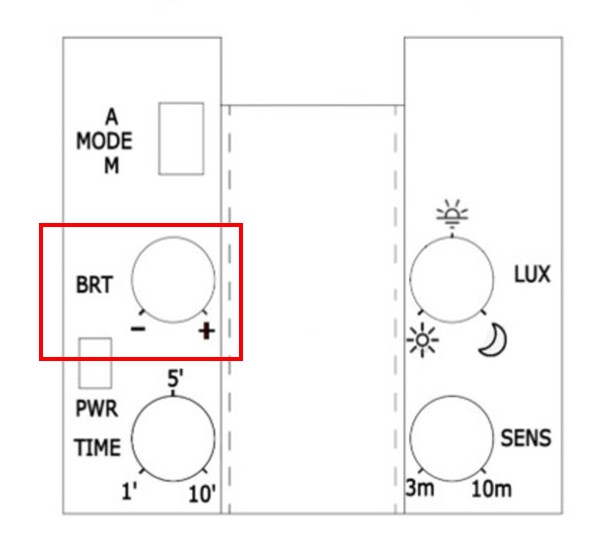

BRT — LED brightness
Adjusts the lighting brightness, from low (−) to high (+).

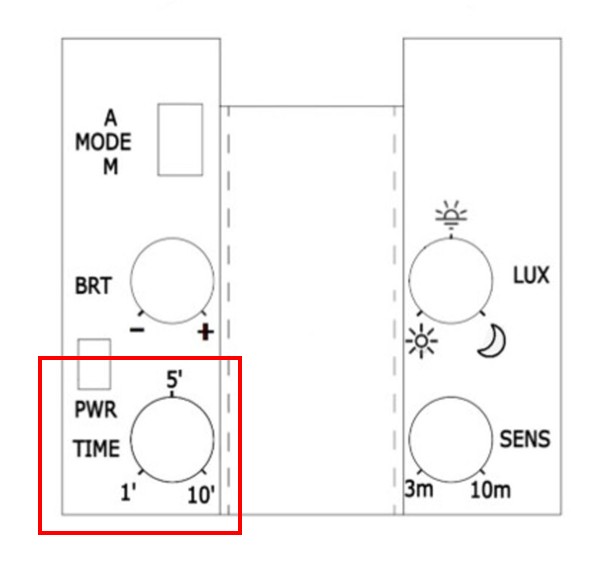

TIME — Lighting duration
Sets how long the light stays on after the last motion detection: 1 minute, 5 minutes, or 10 minutes.

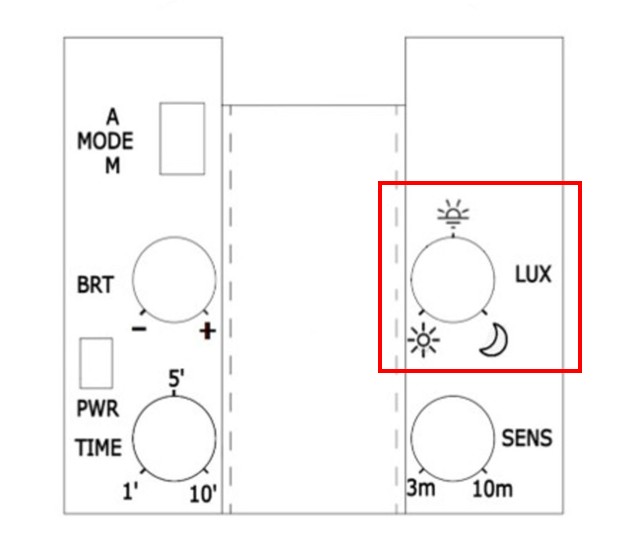

LUX — Ambient light threshold
Determines at what ambient light level the sensor activates. ☀ position: the light operates at all times. ☽ position: the light activates only at night.

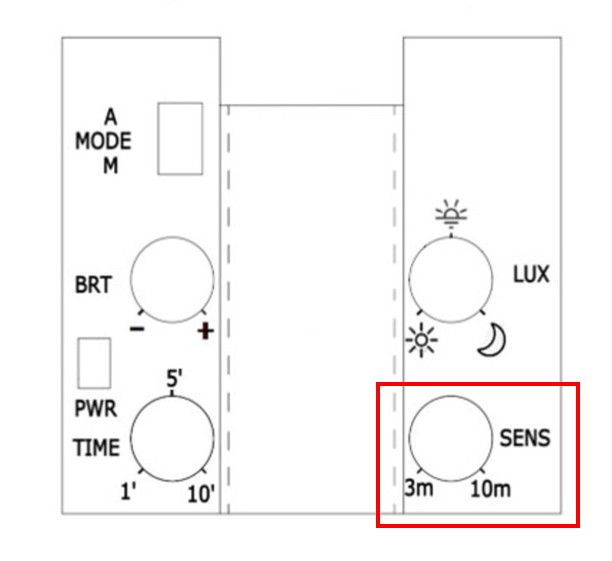

SENS — Detection range
Adjusts the motion sensor range, from 3 m (minimum) to 10 m (maximum).
PWR — Status indicator
The PWR indicator glows red when the product is powered on and operating normally.
For adjustment tips and troubleshooting, see the Settings and troubleshooting section.
