Unwired Installation Setup for Vaillant Elobock
Hi,
can someone please tell me where to connect the power supply of the relay?
-
<% blocks.forEach(function(block, index) { %>
-
<% if (imageHeight) { %>
<% } %> <% if (block.name) { %>
<%= block.name %>
<% } %> <% if (block.description) { %><%= block.description %>
<% } %>
<% }) %>
Comments
1 comment
You‘ll have to add it to the power supply of the boiler (not pictured).
Look for something labeled „230V L N PE“ or similar.

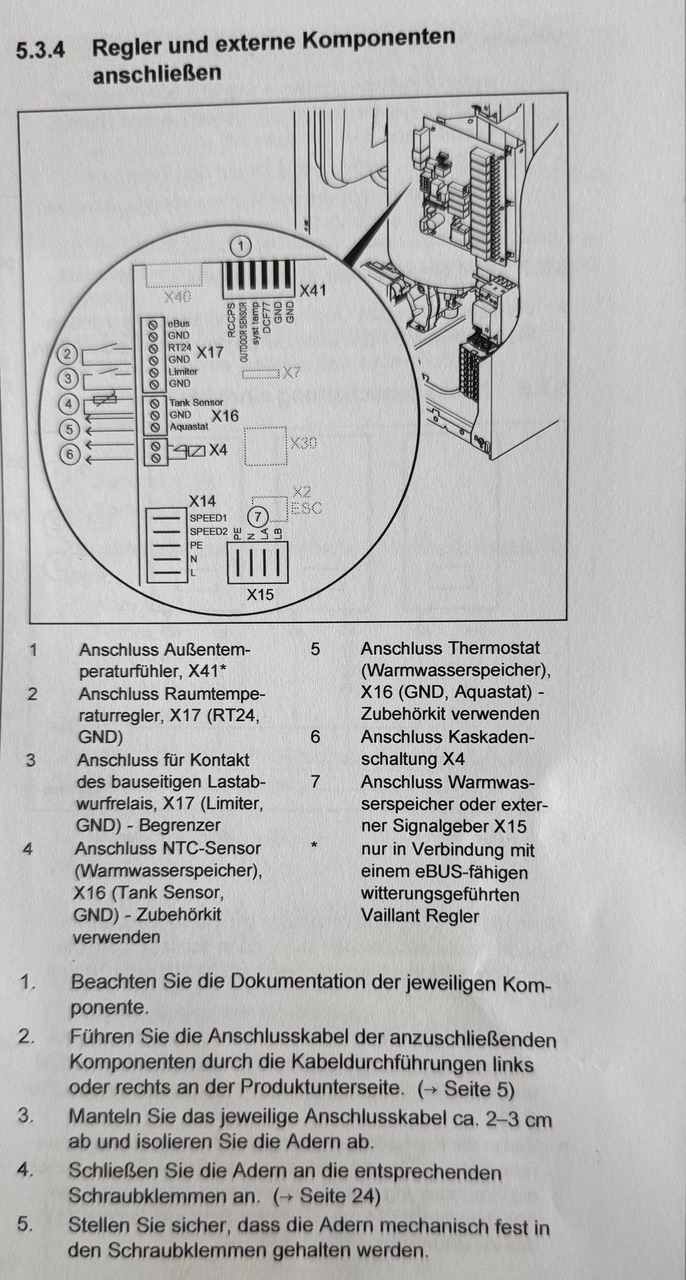

The black/grey wires of the Relais go to the terminals marked as „2“ (RT24, GND), polarity doesn‘t matter.
