Wiring diagrams for high and low voltage Pinned

Here are some old GIFs I made for the original forum to showcase how to wire the Netatmo Doorbell with different power sources and how the Chime Module works.

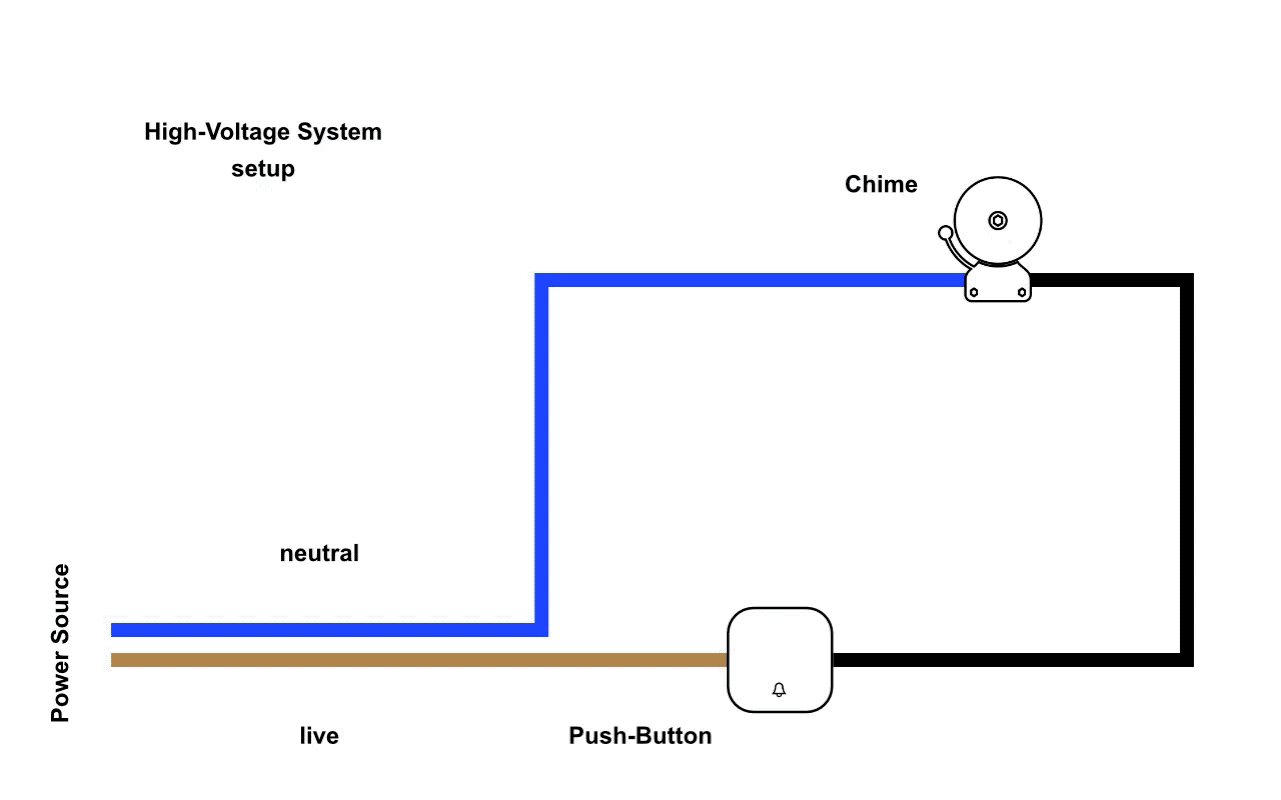

High Voltage Setup:

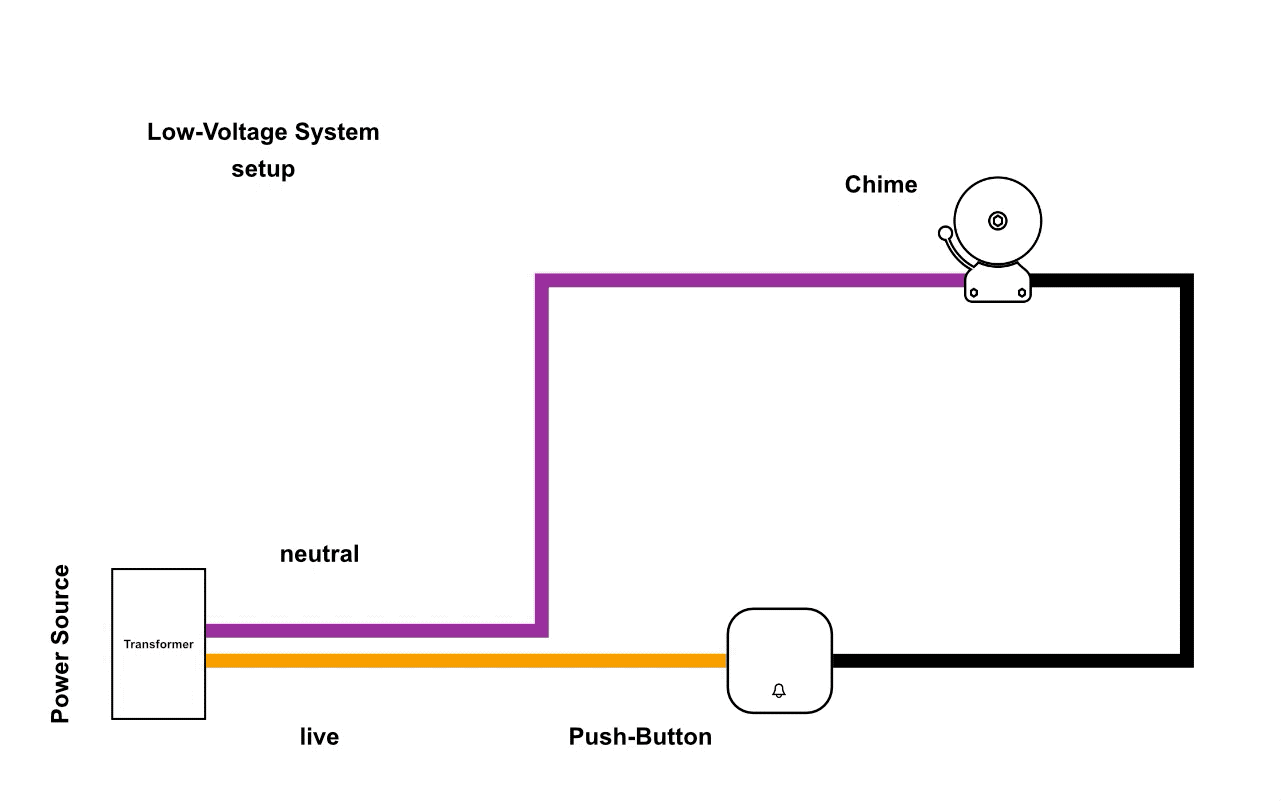

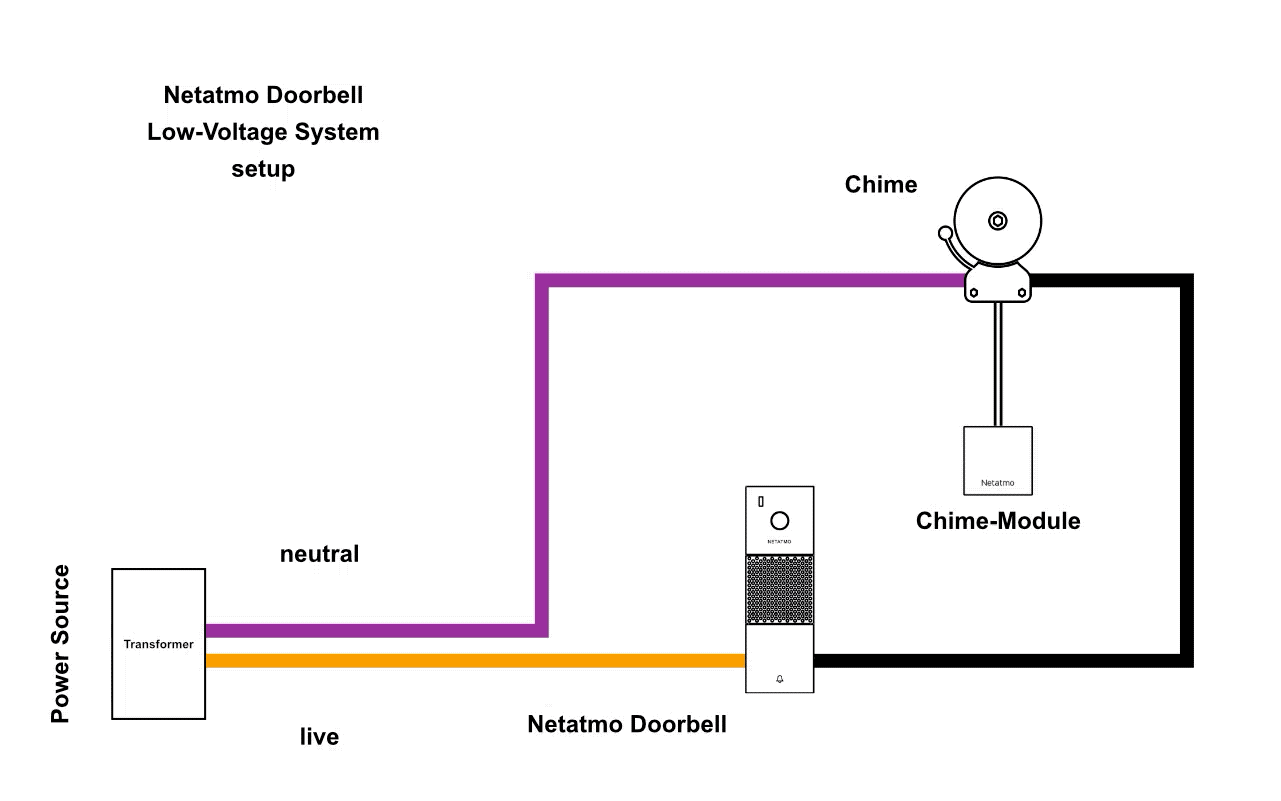

Low Voltage Setup:

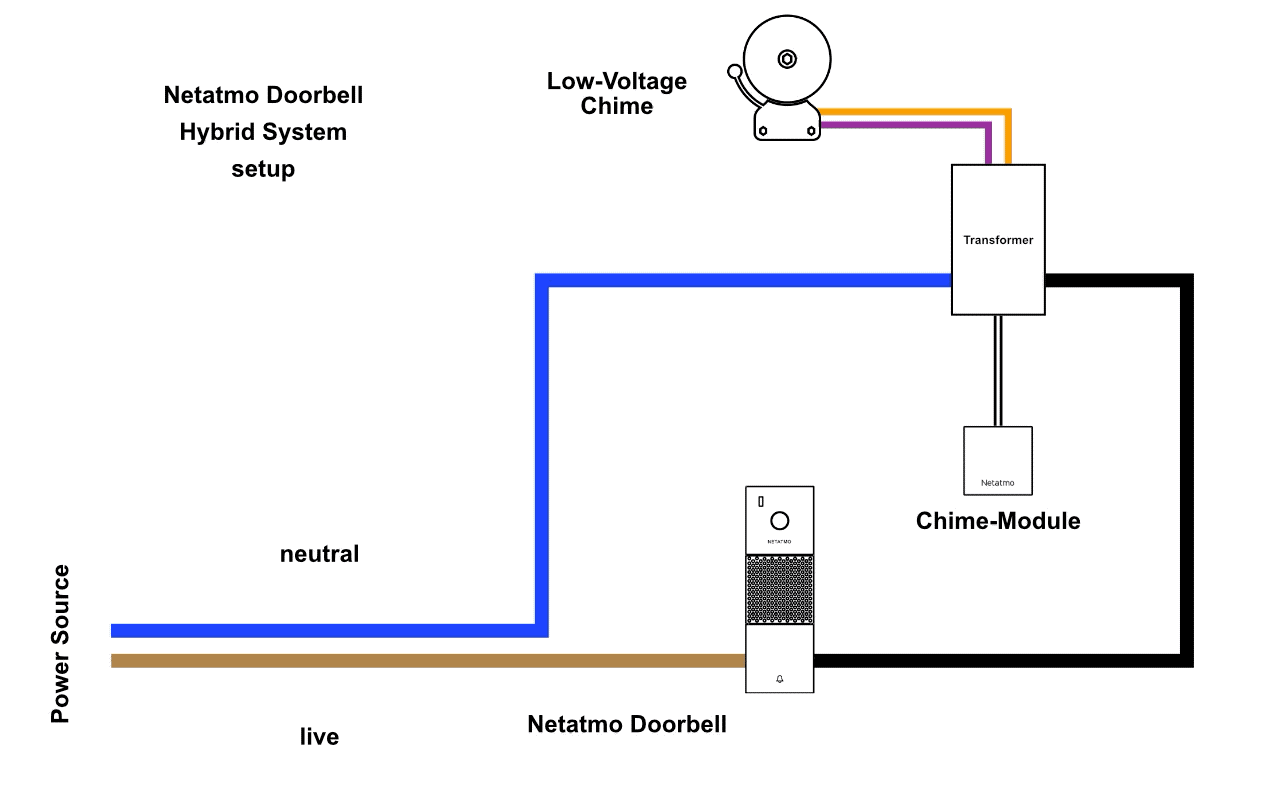

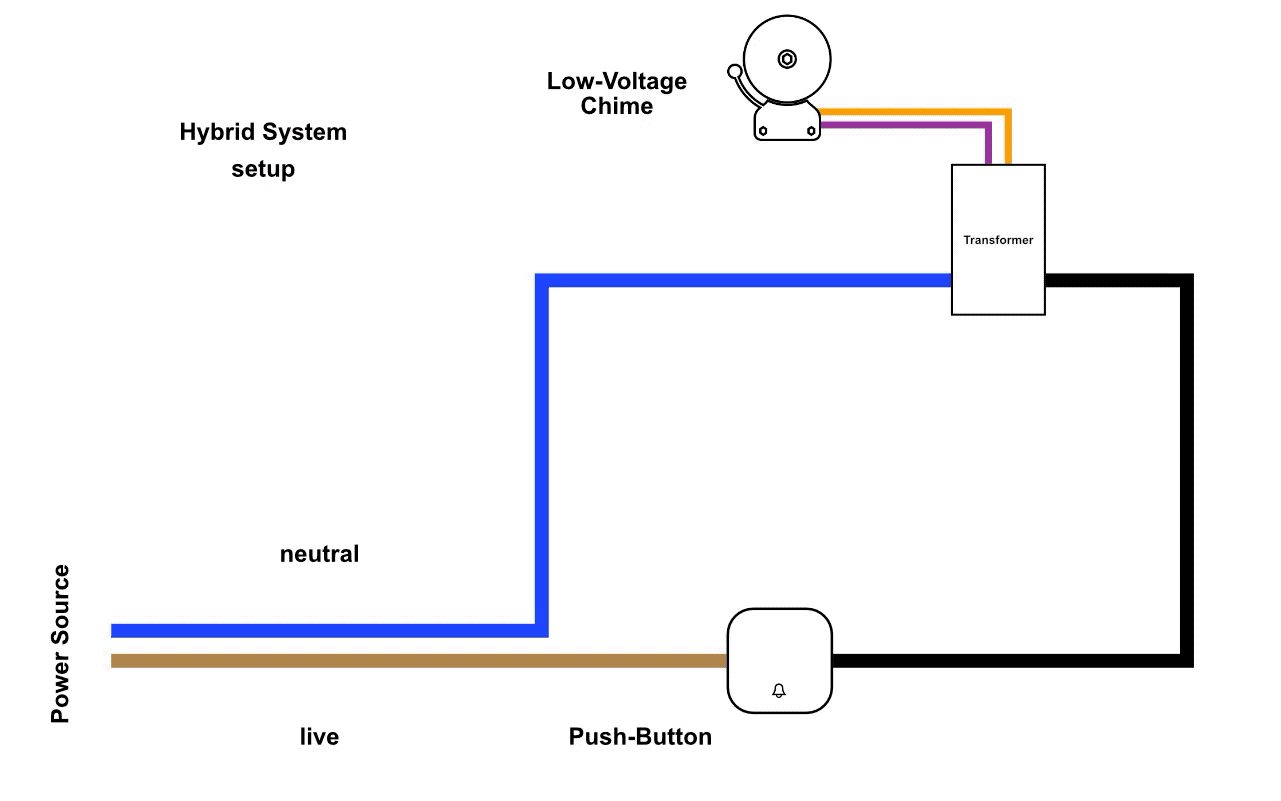

Hybrid Setup (Transformer wired between push button and chime):

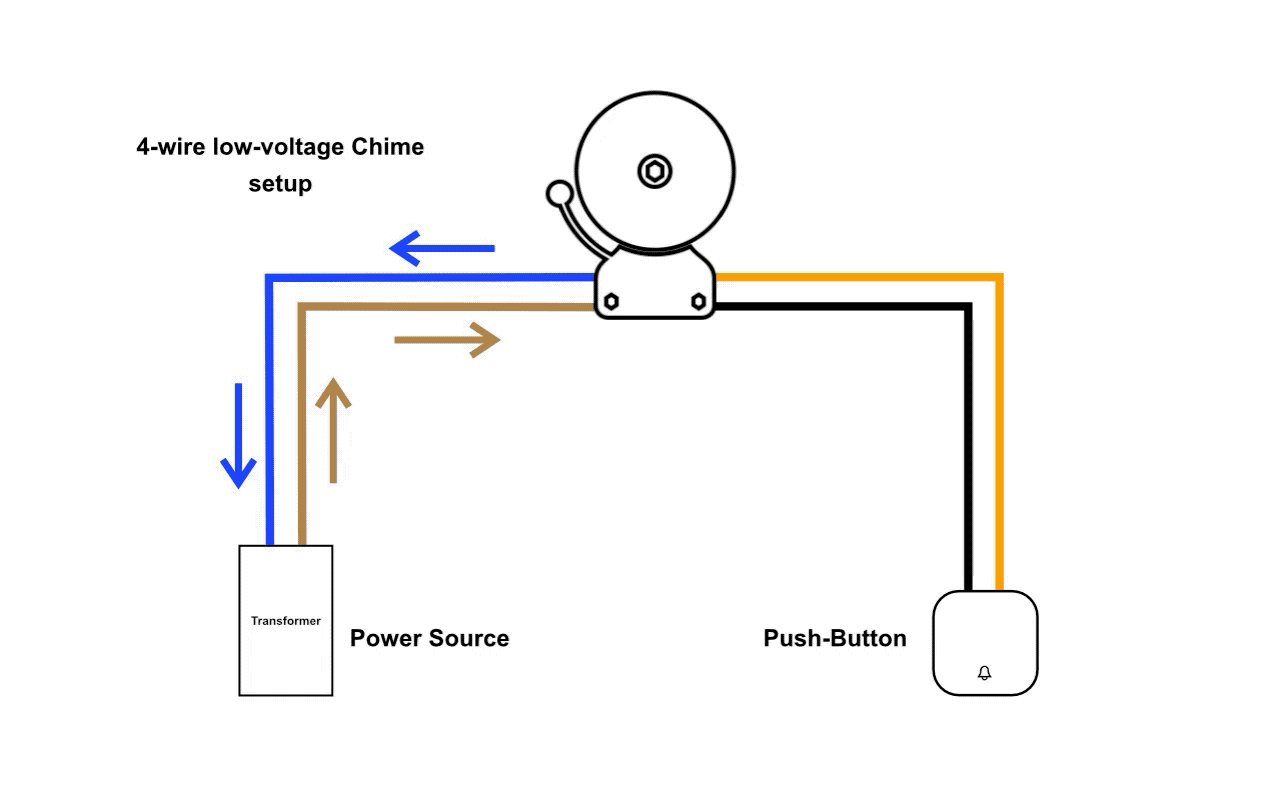

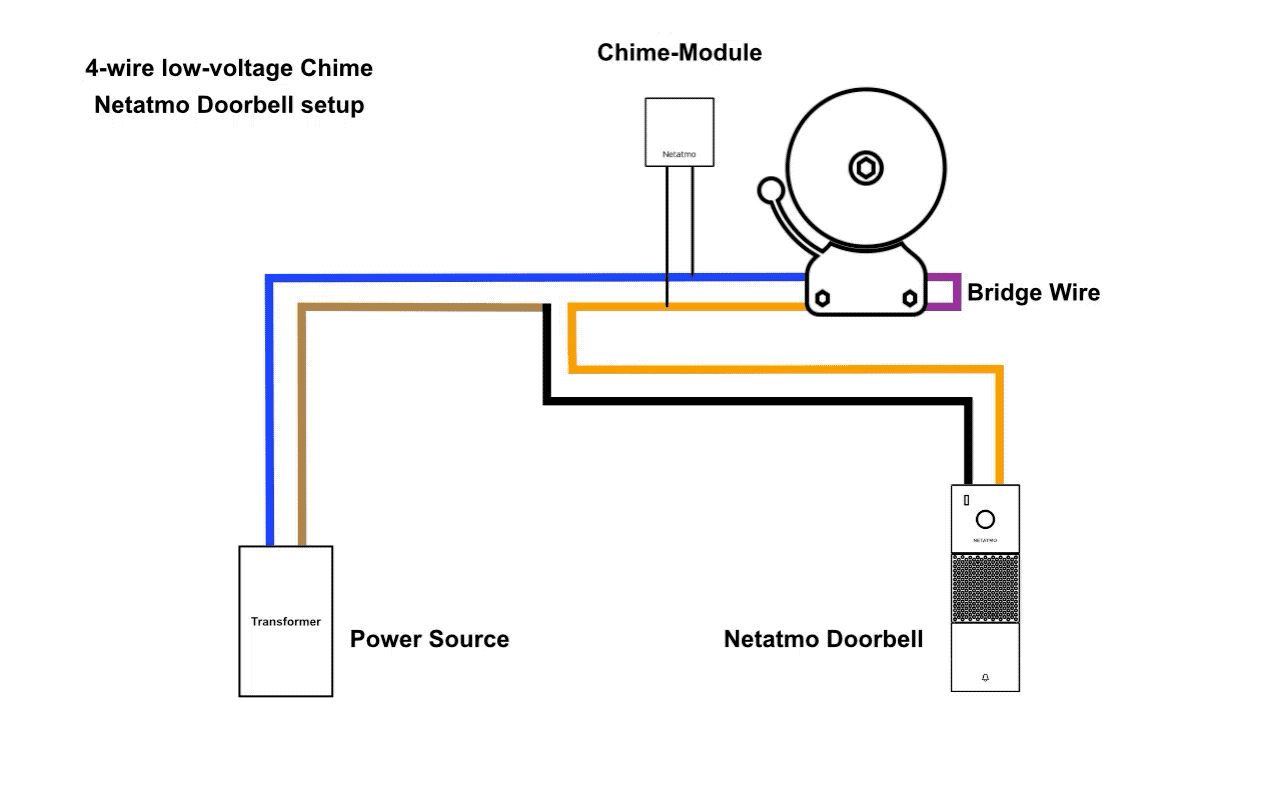

4-wire Chime Setup:

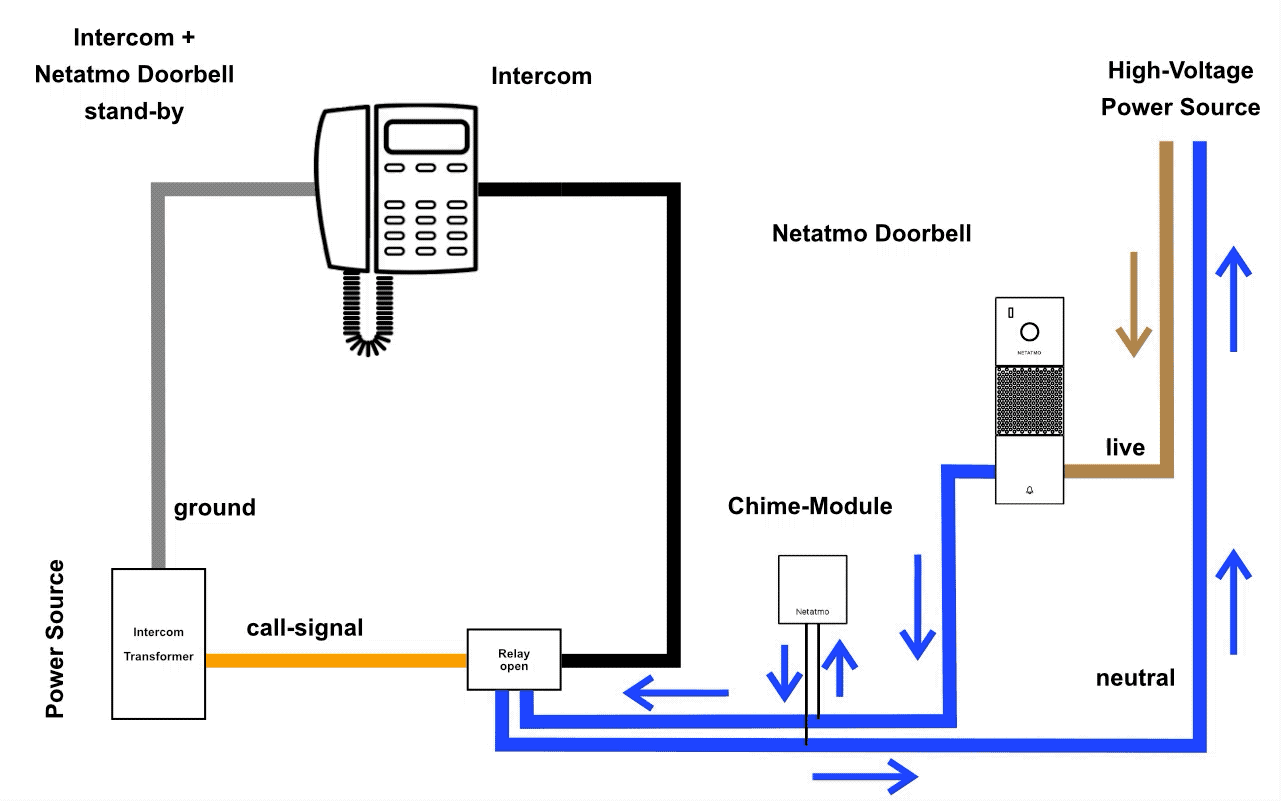

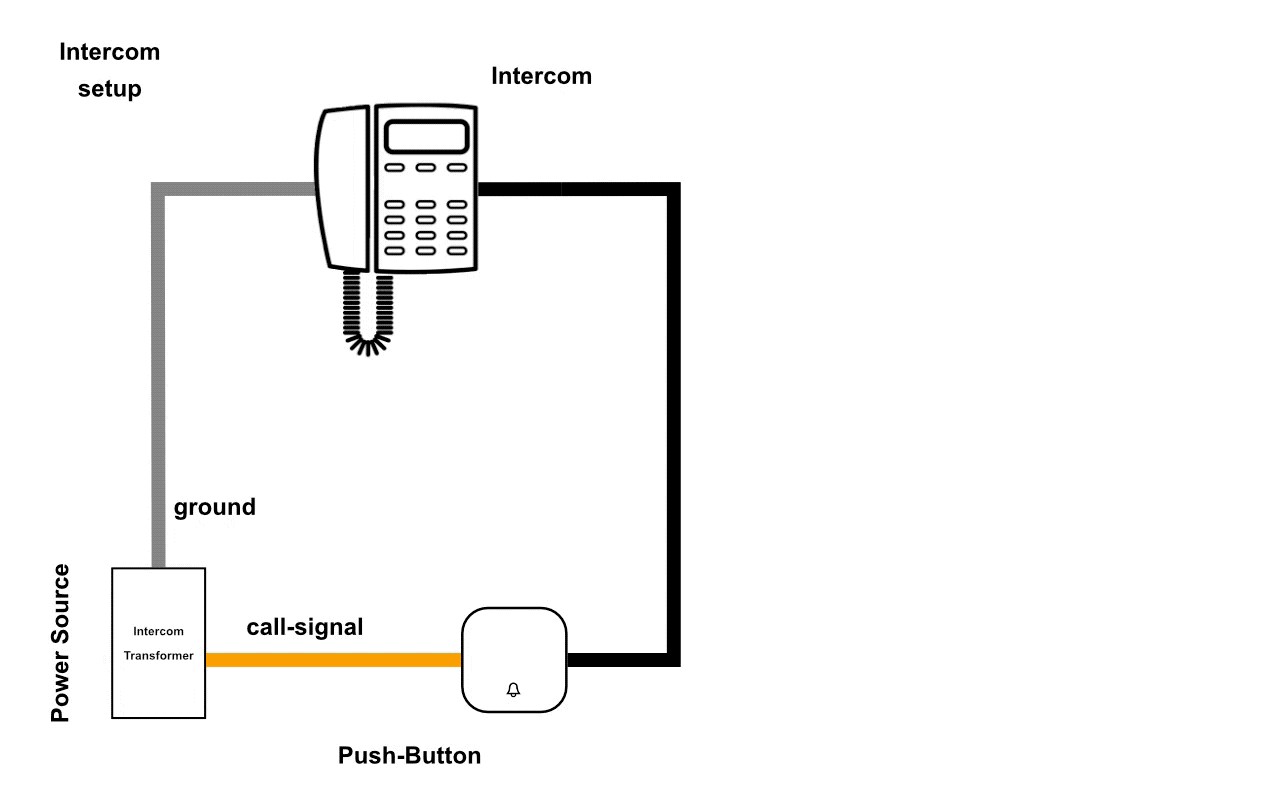

Intercom Setup (when push button carries a specific "call signal" instead of voltage, extra relay required):
