The length of the Smart Door Lock’s cylinder is easy to adjust to the size of your door. Adjust the internal and external length using the following tips:

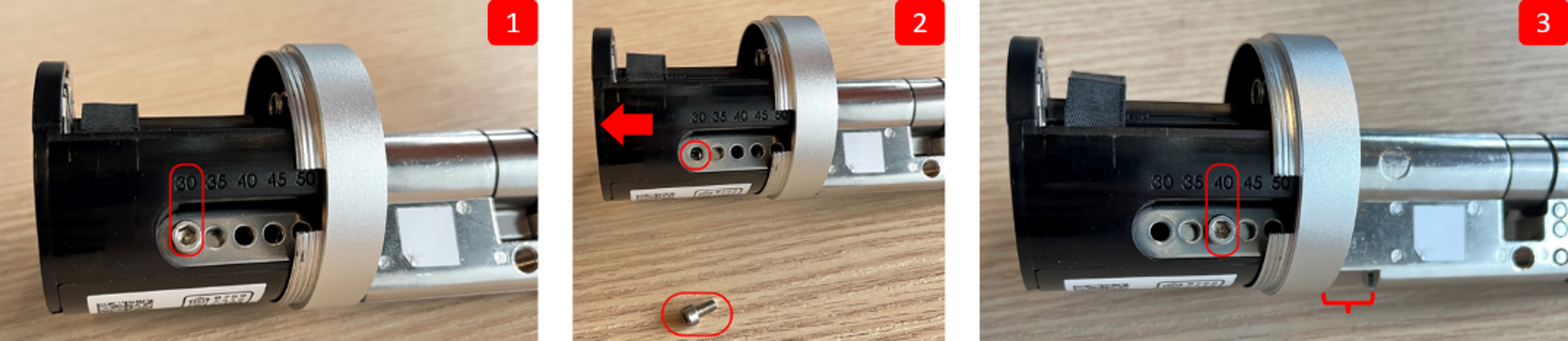

- Internal length adjustable from 30 mm to 50 mm in 5 mm increments. No additional parts are required for this adjustment, which is carried out directly on the product by unscrewing a screw.
- External length adjustable from 30 mm to 50 mm in 5 mm increments. Adjustment may require the installation of an extension:
- Length less than or equal to 30 mm: no extension necessary, the product is adjusted correctly by default.
- Length between 30 mm and 50 mm (inclusive): an extension must be installed.
- Extensions between 35 mm and 40 mm included in the pack.
- Extensions between 45 mm and 50 mm sold separately.
- Beyond 50 mm, your lock is not compatible.
Make sure that the micro-USB port cover under the external knob is accessible. To do this, check that it opens and closes properly.
